Smarter Access. Intelligent Control Powered by AI
Technical Specifications
Power & Connectivity

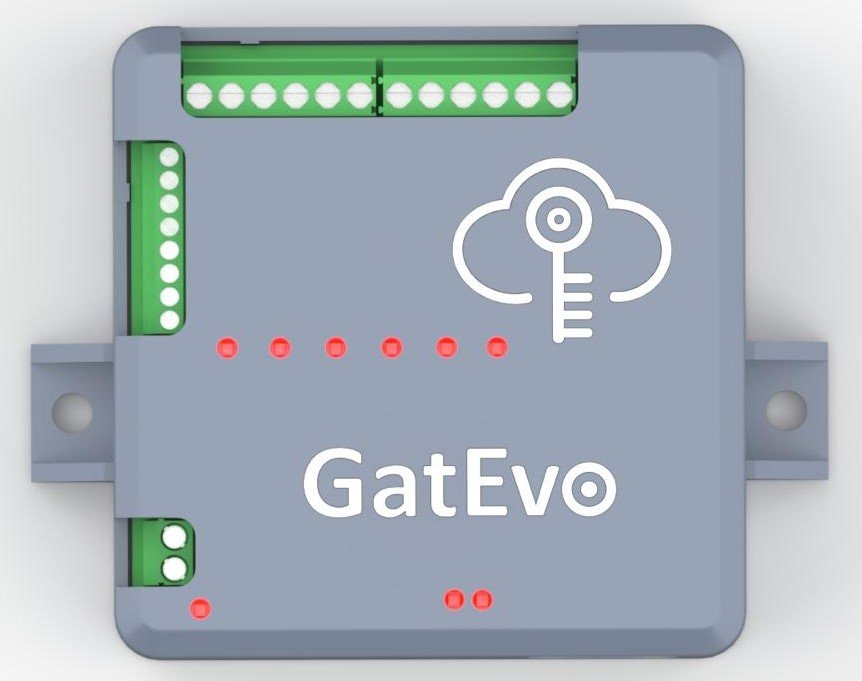

Advanced Control Unit
Multiple safety features
configurable outputs
Advanced control unit with multiple safety features and configurable outputs designed for professional gate automation systems.
-
Power Requirements
Wide voltage range: 9–36V AC/DC for flexible installation options. -
Input Specifications
4x Safety / Trigger inputs with dynamic edge detection support.
-
Output Capabilities
6x Configurable relay outputs for maximum flexibility and control. -
Physical Dimensions
Compact design: 70mm x 70mm for easy installation
call us for inquiry
Technical Details
Complete System - Professional grade
specifications
& features
Power System
Wide voltage range 9–36V AC/DC with built-in surge protection and power monitoring for reliable operation.
Input Channels
4x Safety/Trigger inputs with configurable edge detection, debouncing, and isolation for maximum safety.
Relay Outputs
6x Configurable relay outputs with individual control, timing functions, and fault detection capabilities.
Design
Compact 70mm x 70mm form factor with IP65 rating, DIN rail mounting, and robust construction.
Safety Features
Dynamic edge detection, fail-safe operation, emergency stop integration, and compliance with EN 12453 standards.
Environmental
Operating temperature -20°C to +60°C, humidity resistance, and UV-stable housing for outdoor installations.
