Smarter Access. Intelligent Control Powered by AI

GatEvo-Connect

  • Home
  • GatEvo-Connect
Our Services

The Brain Behind Smart Access.
Built for Professionals.

View All Project View All Services

High-Spec Programmable Relays

Independently control gates, pedestrian paths, lighting, intercoms, locks, and more. Dry contact rated at 5A @ 250V AC / 30V DC.

  • Gate Control

  • Lighting Systems

  • Security Locks

Advanced Analogue Safety Inputs

Monitor up to 8 safety edges (2 per input) with 8.2kΩ or 4.1kΩ resistance monitoring.

  • Safety Edge Monitoring

  • 8.2kΩ Resistance

  • 4.1kΩ Resistance

Geo-Fencing Smart Triggering

Activate up to 6 relays when users arrive via smart location-based automation.

  • Location-Based Control

  • Smart Automation

  • 6 Relay Activation

Device Bus Port

For expansion with keypads, intercoms, RFID modules, or future accessories.

  • Keypad Integration

  • RFID Modules

  • Future Accessories

Multiple Connectivity

Supports Wi-Fi, Bluetooth 5.0, Ethernet, and RS485 — ideal for residential or commercial setups.

  • Wi-Fi & Bluetooth 5.0

  • Ethernet Connection

Onboard Status LEDs

Multicolour LEDs show live relay status, faults, input resistance values, and network state — perfect for fast installation and commissioning.

  • Live Status Display

  • Fault Indication

  • Network Status

Compact & Durable

Just 70mm x 70mm x 25mm — fits easily in most control panels. DIN rail or screw mount

  • 70mm x 70mm x 25mm

  • DIN Rail Mount

  • Screw Mount Option

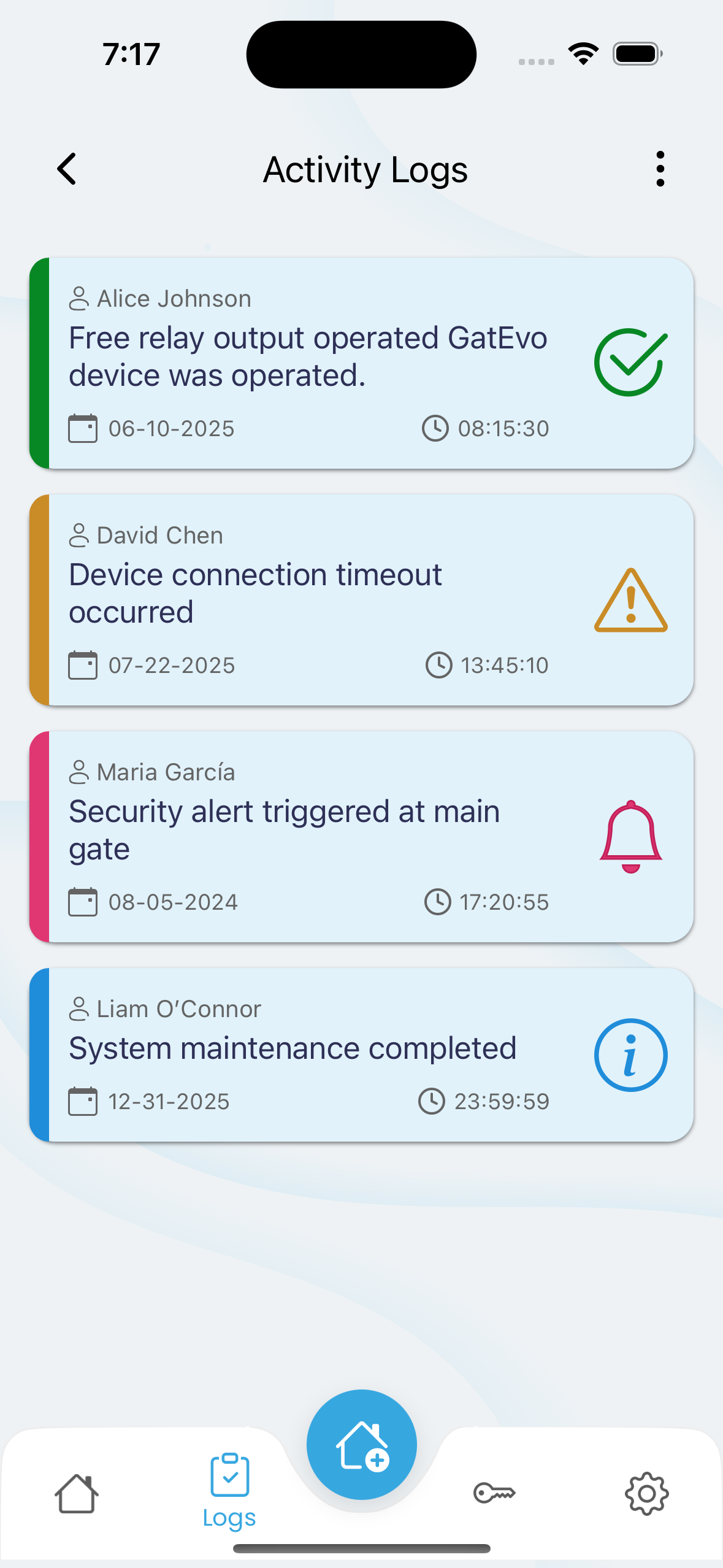

Mobile App Control

Don’t let yourbusiness fall behind
—embrace the power of mobility today

Control your home effortlessly with the Gatevo app—open garages, manage access, and secure your space with a tap!

  • Available on Android and iOS

    Cross-platform compatibility.

  • Complete Control

    Control relays, safety inputs, logs, and geo-triggers from anywhere

  • Multi-User Support

    Supports up to 200 users, each with custom permissions

  • White-Label Options

    Available for trade customers

Security Features

Your Business with Cutting-Edge IT
Solutions

Military-grade encryption

  • AES-256 Encrypted

    Communication

  • Scalability

    Reliability

  • Innovation

    Efficiency


Secure communication
protocols

  • HTTPS

    WebSocket APIs

  • Scalability

    Reliability

  • Innovation

    Efficiency


OTA Firmware
Updates

  • Secure Bootloader

    Cloud Scalability

  • Cloud Integration

    Cloud Performance

  • Cloud Backup

    Cloud Optimization


Cloud Binding
Security

  • Unique Device ID

    Predictive Analytics

  • Big Data

    Business Intelligence

  • Data Visualization

    Data Strategy

Device Specifications

Technical Specifications - Complete
GatEvo-Connect overview

Power & Control

Power Supply: 9–36V AC/DC
Relay Outputs: 6 x Dry Contact
Max Switching: 250V AC / 30V DC

Input & Connectivity

Inputs: 4 x Analogue Edge, 1 x Override
Edge Resistance: 8.2kΩ / 4.1kΩ
Connectivity: Wi-Fi, Bluetooth 5.0, Ethernet, RS485

Physical & Environment

Dimensions: 70mm x 70mm x 25mm
Temperature: -20°C to +65°C
LED Indicators: Multicolour status + fault LEDs

Expansion & Support

Expansion: 1 x Device Bus Port
App Support: iOS & Android
Warranty: 12 Months comprehensive coverage

Advanced Features

Protocol Support: Multiple communication protocols
Edge Detection: Dual edge per input capability
Status Monitoring: Real-time system diagnostics

Installation & Config

Setup: Plug-and-play installation
Configuration: Mobile app setup wizard
Mounting: Compact DIN rail or wall mount design

What is GatEvo Card ?

What is GatEvo?

Control gates, doors, barriers and more from your smartphone — with
automation and real-time diagnostics that keep you in control and informed.

Get Support

+0 114 437 1271

Get in Touch

Smart Control

Manage all access points from one app

Real-time Monitoring

See status and performance data instantly

Designed for the Trade

Installers get exclusive access
to advanced tools and unbeatable
support

Join the Trade Network

  • Trade-only pricing

  • QR-coded pairing

  • Lifetime support

Fault Detection Example

Check the Timeline of Your
Faults and Activities

  • Timelines
Timeline 1

16:03

Car Approaches

Vehicle detected at entrance point
Timeline 2

16:05

Fault Detected

System automatically identifies operational issue
Timeline 3

16:10

Installer Notified

Alert sent with diagnostic information
Timeline 1

16:03

Car Approaches

Vehicle detected at entrance point
Timeline 2

16:05

Fault Detected

System automatically identifies operational issue
Timeline 3

16:10

Installer Notified

Alert sent with diagnostic information
